BRACKISH WATER REVERSE OSMOSIS ( BWRO ) SYSTEMS
Generalities
In a simple way, reverse osmosis systems can be described as an advanced filtration method with the use of semi permeable membranes for removal of dissolved ions and many types of
molecules in water by applying external high pressure .
The applied pressure is used to overcome osmotic pressure, a natural property driven by concentration of dissolved material in liquids and the result is that the solute is retained on the pressurized side of the membranes and the pure solvent is allowed to pass to the other side.

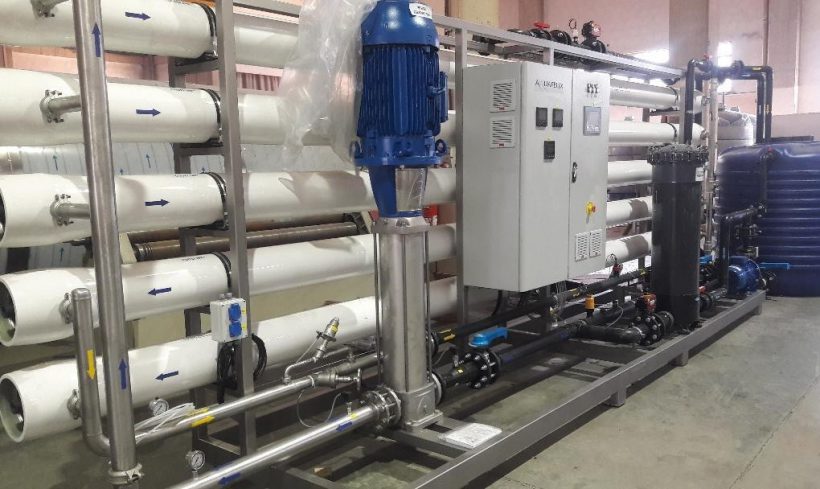

Our BWRO systems are manufactured to produce purified water from raw water sources with salinity ranging
from 500 ppm to 15.000 ppm. Standard models feature all components mounted on skid controlled automatically by a PLC connected to a user friendly HMI consisting of a touch screen
monitor ( for industrial models ). Operational pressure generally stays under 20 bar. In most cases, systems are preceded by a proper
pre-treatment to avoid membrane fouling by sediments, hardness, organic matter, bacteria, silica, metal oxides or even chlorine.
Features
- Up to 125 m3/h product flow capacity ( as standard model on skid )
- Superior quality TFC Spiral Wound Membranes with high rejection
- Fiber Reinforced Composite Plastic ( FRP ) or Stainless Steel
Membrane Vessels
- Protective microfiltration on system skid consisting of PVC, FRP or
Stainless Steel Cartridge Filter
- All instrumentation and measurement sensors pre-installed on system skid : conductivity sensors, flow meters, pressure gauges switches, set of valves
- Full automatic operation via industrial type PLC and Touch screen HMI panel : Except alarm conditions, no operator
control is needed
- CIP Unit For Automatic Flushing & Periodic Membrane Cleaning
- All pressurizing units ( high pressure & CIP pumps ) consist of AISI 316 L or higher quality material for critical parts ( except commercial models up to 30 m3/day)
- AISI 316 quality High pressure piping ( conform to related EN norm )
- Stainless Steel or Carbon Steel Skid paint with Epoxy
